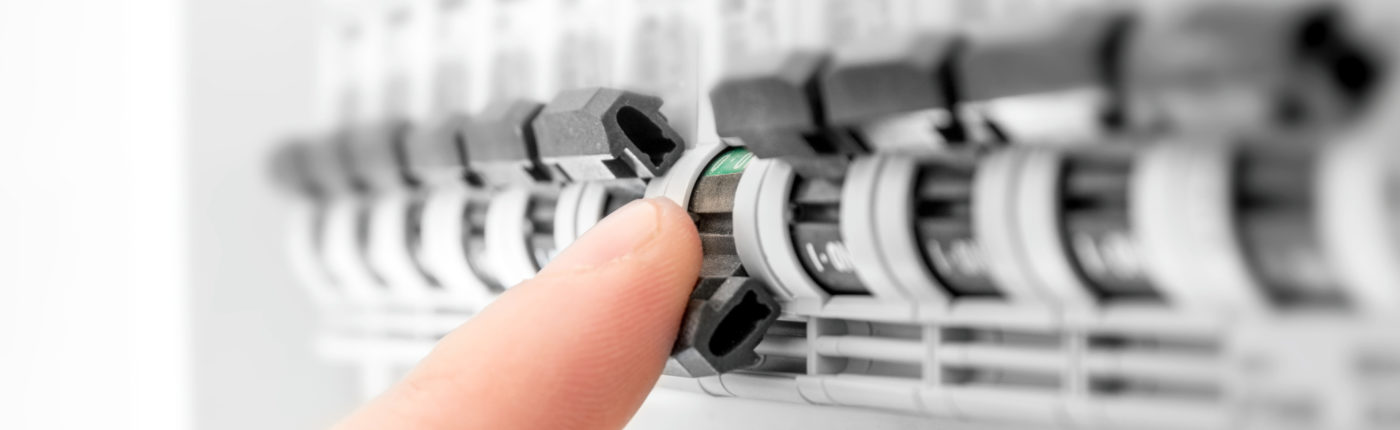

If your air conditioner quits working unexpectedly, head to your home’s main breaker box to see if it’s tripping the breaker. If so, it’s a potentially-serious issue because breakers are essential safety devices that trip to halt the flow of electricity when an electrical circuit gets overloaded.
What to Do If Your A/C Trips the Breaker
First, touch the tripped breaker. If it feels hot, it likely needs replacement, so call a licensed electrician right away. If the breaker doesn’t feel any warmer than the adjacent ones, a spike in your A/Cs amp draw may have overloaded the circuit and caused it to trip.
There are a few possible reasons why an air conditioner draws extra amps and overloads its circuit. One that’s easy to troubleshoot is a badly-clogged air filter that has restricted vital airflow and overworked the A/C. If the filter is dirty, replace it then reset the air conditioner’s circuit breaker. If it trips a second time, leave it shut off and call your HVAC contractor to come out and check for other issues with the cooling system, such as:
- Dirty condenser coil. A buildup of dirt and debris on the outdoor condenser coil can inhibit proper heat transfer, which puts extra strain on the A/C and cause a rise in its amp draw.
- Low coolant level. The air conditioner has to work harder when the refrigerant level is too low, and this can increase its amp draw and make the breaker trip.
- Leaky compressor valves. Leaky valves can make the compressor struggle to pressurize the refrigerant, which can cause a spike in the amp draw, which overloads the electrical circuit.
- Faulty compressor capacitor. A bad capacitor can make the A/C draw extra amps as it tries to start up, so it trips the breaker when it does cycle on.
- Outdoor fan malfunction. A malfunctioning condenser fan can’t do an effective job of cooling the coil, so heat transfer is less effective which puts extra strain on the A/C.
If the A/C is tripping the breaker in your Coastal Bend home, contact us at CCAC for expert help.
